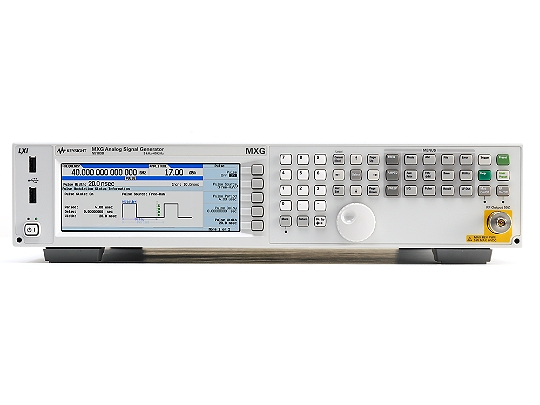

Keysight N5183B-540 9 kHz to 40 GHz Signal Generators







  •
Manufacturer: Keysight Product Series: N5183B MXG Series
Base Model: N5183B-540 Total Listings: 0 Units
Description: 9 kHz to 40 GHz Signal Generators
Data Sheet PDF: Download N5183B-540 Data Sheet
Dealer's Lowest Price:
New N5183B-540 : N/A
Used N5183B-540 : N/A
N5183B-540 Rental : N/A
Lease : N/A
Calibration : N/A
Price is not right? We can notify you when a listing matches your price. Notify me
Get 10% Off New Keysight N5183B-540
Quote Now !













Add message to dealer?



Quote N5183B-540 Now !

AVAILABLE INVENTORY

PRODUCT SPECIFICATIONS

PRODUCT OVERVIEW

VIDEO & LITERATURES

USER REVIEWS

FORUM

GET QUOTE
Keysight N5183B-540 Inventory Listings

Filter by:         APPLY FILTER

No available dealer listings for N5183B-540.



Keysight N5183B-540 Specifications
Frequency Range9 kHz to 40 GHz
Output Range-130 dBm to 23 dBm
Type2.4 mm Male
Analog or VectorAnalog
Keysight N5183B-540 Product Overview
( own it? please share by Add Your Own Review! )
Frequency 9 kHz to 40 GHz
Performance Level ??????
Output Power @1 GHz -130 dBm to +23 dBm
Phase Noise @1 GHz (20 kHz offset) -146 dBc/Hz
Frequency Switching ≤ 600 µs
Harmonics @1 GHz <-40 dBc
IQ Modulation BW Internal/External n/a
Non-Harmonics @1 GHz -100 dBc
Sweep Mode
  • List
  • Step
Baseband Generator Mode n/a
Software-General Purpose
  • AM, FM, PM
  • Multifunction Generator
  • Pulse
  • Pulse Train Generator
Software-Cellular/Wireless Connectivity n/a
Software-Audio/Video Broadcasting n/a
Software-Detection/Positioning/Tracking/Navigation n/a
Waveform Playback Memory n/a
Frequency Modulation-Maximum Deviation @1 GHz 4 MHz
Frequency Modulation-Rate @100 kHz Deviation DC to 7 MHz
Phase Modulation-Maximum Deviation in Normal Mode 0.5 rad to 64 rad
Phase Modulation-Maximum Deviation in High-BW Mode 0.05 rad to 6.4 rad
Amplitude Modulation-Maximum Depth 100%
Amplitude Modulation-Rate

0 to 100 kHz

Applications Available Yes
Analog Yes

Keysight N5183B MXG Series
PRODUCT IDPRODUCT RATINGMANUFACTURERBASE MODELCATEGORYDESCRIPTION
1347 KeysightN5183B-513Signal Generators9 kHz to 13 GHz
1348 KeysightN5183B-520Signal Generators9 kHz to 20 GHz
1349 KeysightN5183B-532Signal Generators9 kHz to 31.8 GHz
1350 KeysightN5183B-540Signal Generators9 kHz to 40 GHz
