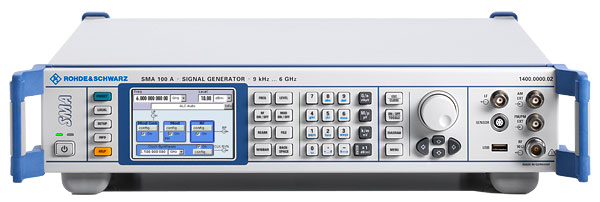

Rohde and Schwarz SMA100A 9 kHz to 3 GHz or 6 GHz

( own it? please share by Add Your Own Review! )

Product Information
Manufacturer: Rohde and Schwarz
Base Model: SMA100A
Product Series: SMA Series
Description: 9 kHz to 3 GHz or 6 GHz
Data Sheet PDF: Download SMA100A Data Sheet
Total Listings: 4 Units
Dealer's Lowest Price: New : N/A
Used: $ 16900
Rental: N/A
Lease: N/A
Calibration: N/A

Price is not right? We can notify you when a listing matches your price.     Notify me
Get Competing Price Quotes on this SMA100A
Rohde and Schwarz SMA100A Product Overview

Excellent signal quality

  • Very low SSB phase noise of typ. –135 dBc (20 kHz carrier offset, f = 1 GHz, 1 Hz measurement bandwidth), typ. –140 dBc with the Enhanced Phase Noise Performance option (R&S®SMA-B22)
  • Wideband noise of typ. –160 dBc (>10 MHz carrier offset, f = 1 GHz, 1 Hz measurement bandwidth)
  • Nonharmonics of typ. –100 dBc (>10 kHz carrier offset, f < 1500 MHz, with the R&S®SMA-B22 option)

Ideal for use in production

  • Very short frequency / level setting times of typ. 1.3 ms/1ms across the entire frequency and level range, <450 µs in LIST mode
  • Fast hopping mode with flexibly addressable frequency and level pairs, as fast as normal LIST mode
  • Frequency setting time of nominal 10 µs within a bandwidth of 80 MHz due to direct access to the DDS-based synthesizer (with the R&S®SMA-B20 or R&S®SMA-B22 option; FM EXTERNAL DIGITAL mode)
  • Electronic attenuator with built-in overvoltage protection over entire frequency range
  • High output power of up to +18 dBm, overrange +28 dBm
  • Very high level accuracy and repeatability

Mil/Aero applications

  • Pulse modulator with excellent characteristics (on/off ratio typ. 100 dB, rise/fall time typ. 10 ns)
  • Pulse generator integrated as standard
  • Optional high-performance pulse generator with minimum pulse width of 10 ns (R&S®SMA-K23)
  • Optional chirp modulation (R&S®SMA-B20 or R&S®SMA-B22)
  • Optional VOR/ILS modulation (R&S®SMA-K25)
  • Optional DME modulation (R&S®SMA-K26)
  • Optional DME analysis (R&S®SMA-K26)
  • Optional pulse train (R&S®SMA-K27)
  • Optional operating altitude up to 4600 m (R&S®SMA-B46)

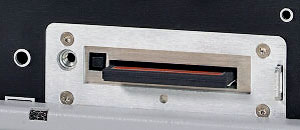

  • Optional removable mass storage (compact flash disk, R&S®SMA-B80)

All-purpose instrument

  • Frequency range of 9 kHz to 3 GHz (R&S®SMA-B103/R&S®SMA-B103L) or 6 GHz (R&S®SMA-B106/R&S®SMA-B106L)
  • Frequency, level and LF sweeps
  • AM, broadband FM/fM (R&S®SMA-B20 or R&S®SMA-B22), pulse modulation
  • Built-in LF generator up to 1 MHz, optional multifunction generator (R&S®SMA-K24) up to 10 MHz
  • Flexible and versatile power analysis (R&S®SMA-K28)
  • Optional low-jitter clock synthesizer up to 1.5 GHz (R&S®SMA-B29)

Intuitive operating concept

  • Intuitive user interface with graphical display of signal flow (block diagram)
  • Context-sensitive online help

Versatile interfaces

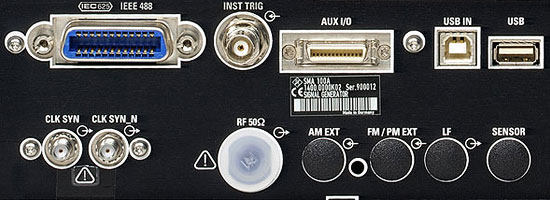

  • Remote control via GPIB, LAN or USB
  • USB connectors (e.g. for keyboard, mouse, memory stick)
  • Support of R&S®NRP-Zxx power sensors for precise power measurements
  • Selectable control language (SCPI or remote control emulation of various signal generators)
  • Control via remote operation tool (e.g. VNC)

More details on Rohde and Schwarz website
Available Product Inventory Matching Results
( 4 Items )
   Dealer RatingDealerLocationBrandModel NumberDescriptionNewUsedRentalLeaseCal
1 144RS SMA100A-B106-B22-B80  (2) Top Dog Test CA, USARohde & Schwarz RS SMA100A-B106-B22-B80 Dealer product details page link SMA100A Signal Generator 9kHz to 6GHzB22=Pulse Modulation B80 Removeable Mass storageN/A$35,000N/A$1,925N/A Get Quote
2 335SMA100A  (1) Recon Test Equipment Inc FL, USARohde & Schwarz SMA100A Dealer product details page link SMA100A - Rohde & Schwarz SMA100A 6.00GHz Signal GeneratorsN/AN/AN/AN/AN/A Get Quote
3 85SMA100A   MATsolutions TX, USARohde & Schwarz SMA100A Dealer product details page link RF Analog Signal Generator, 9 kHz to 3 GHzN/AN/AN/AN/AN/A Get Quote
4 23SMA100A-B103-B22  (2) Axiom Test Equipment CA, USARohde & Schwarz SMA100A-B103-B22 Dealer product details page link Rohde & Schwarz SMA100A Signal Generator, 9 kHz to 3 GHz or 6 GHzN/A$16,900N/AN/AN/A Get Quote
