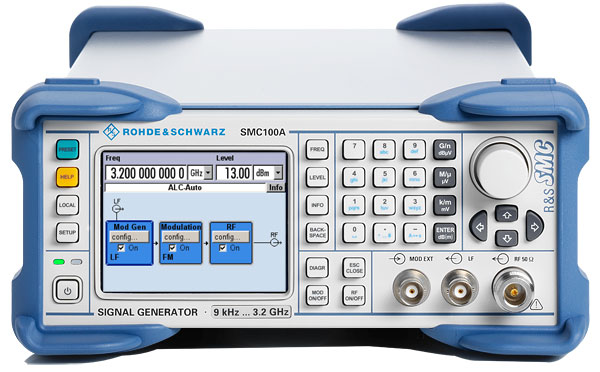

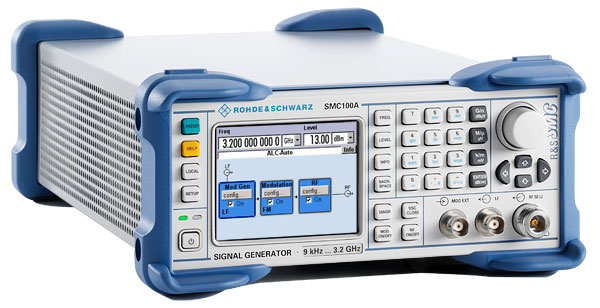

Rohde and Schwarz SMC100A 9 kHz to 1.1 GHz or 3.2 GHz Signal Generators







  •
  •
  •
  •
  •
  •
  •
Manufacturer: Rohde and Schwarz Product Series: SMC Series
Base Model: SMC100A Total Listings: 2 Units
Description: 9 kHz to 1.1 GHz or 3.2 GHz Signal Generators
Data Sheet PDF: Download SMC100A Data Sheet
Dealer's Lowest Price:
New SMC100A : N/A
Used SMC100A : N/A
SMC100A Rental : N/A
Lease : N/A
Calibration : N/A
Price is not right? We can notify you when a listing matches your price. Notify me
Quote Now !













Add message to dealer?



Quote SMC100A Now !

AVAILABLE INVENTORY

PRODUCT SPECIFICATIONS

PRODUCT OVERVIEW

VIDEO & LITERATURES

USER REVIEWS

FORUM
  Quote

Company Name is required

Your Name is required

Enter Your Email Here

United States

Enter Your Zip Code Here

Enter Message Here (Optional)


Dealers:











Request Quote

Rohde and Schwarz SMC100A Inventory Listings

Filter by:         APPLY FILTER

  PRODUCTRESELLERNEWUSEDRENTALLEASECALIBRATION
85SMC100A
SMC100A Dealer product details page link
Signal Generator

-----
335SMC100A
SMC100A Dealer product details page link
SMC100A - Rohde & Schwarz SMC100A 3.20GHz Signal Generators
 (1)
-----



Rohde and Schwarz SMC100A Specifications
Frequency Range9 kHz to 3.2 GHz
Output Range-120 dBm to 13 dBm
TypeType-N Female
Analog or VectorAnalog
Rohde and Schwarz SMC100A Product Overview
( own it? please share by Add Your Own Review! )
Frequency
Frequency range  R&S®SMC-B101 frequency option  9 kHz to 1.1 GHz
  R&S®SMC-B103 frequency option  9 kHz to 3.2 GHz
Setting time  SCPI mode  <5 ms
Level
Maximum output power  f = 200 kHz to 3.2 GHz  >+13 dBm
  f =500 kHz  typ. above +17 dBm in overrange mode
Level uncertainty  f = 200 kHz to 3.2 GHz  <0.9 dB
  ALC ON, AUTO mode, T = 18°C to 33°C
Setting time  SCPI mode  <5 ms
Back-feed f = 1 MHz to 1 GHz  50 W/50 V
f = 1 GHz to 2 GHz  25 W/50 V
f = 2 GHz to 3.2 GHz  10 W/50 V
Spectral purity
Nonharmonics  carrier offset > 10 kHz, f =1600 MHz  <-60 dBc (typ. -72 dBc)
SSB phase noise f = 1 GHz  <-105 dBc (typ. -111 dBc)
carrier offset = 20 kHz
1 Hz measurement bandwidth
Wideband noise f > 1 MHz, level > 5 dBm  <-138 dBc (typ. -148 dBc)
carrier offset > 10 MHz
1 Hz measurement bandwidth
Supported modulation modes
AM    standard
  AM depth    0 % to 100 %
FM/fM    standard
  Maximum FM deviation  f > 1.6 GHz  4 MHz
  Maximum fM deviation  f > 1.6 GHz  40 rad
Pulse    standard
  Rise/fall time    <500 ns (typ. 100 ns)
  Minimum pulse width  with integrated pulse generator  1 µs
  On/off ratio    >80 dB
Connectivity

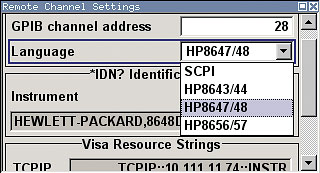

Remote control   IEC/IEEE bus (with R&S®SMC-K4 option)
  Ethernet (TCP/IP)
  USB
Peripherals    USB

More details on Rohde and Schwarz website
