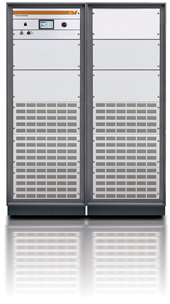

Amplifier Research 4000W1000B High Power RF Amplifier, 4000 Watt CW, 80 - 1000 MHz Amplifiers - RF







  •
Manufacturer: Amplifier Research Product Series: RF Amplifiers
Base Model: 4000W1000B Total Listings: 0 Units
Description: High Power RF Amplifier, 4000 Watt CW, 80 - 1000 MHz Amplifiers - RF
Data Sheet PDF: Download 4000W1000B Data Sheet
Average New 4000W1000B Price: Get Quote
Average Used 4000W1000B Price: Get Quote
Estimated Rental Rate :
Get Quote
Average Lease Rate : Get Quote
4000W1000B Calibration Price: Get Quote
* Rates depend on unit configuration, duration of the rental, and inventory levels and will vary from TestUnlimited estimates. Rental Tips
**Lease rate estimates are based on "A" credit rating, 60-month term. Unit configuration and inventory levels will cause the rate to vary from the estimate above. Benefits of Leasing
Quote Now !













Add message to dealer?



Quote 4000W1000B Now !

AVAILABLE INVENTORY

PRODUCT OPTIONS

PRODUCT SPECIFICATIONS

PRODUCT OVERVIEW

VIDEO & LITERATURES

USER REVIEWS

FORUM

GET QUOTE

Amplifier Research 4000W1000B Inventory Listings and Pricings
Filter by:         APPLY FILTER

No available dealer listings for 4000W1000B.
  Please select the Condition of the item
Amplifier Research 4000W1000B Product Overview
( own it? please share by Add Your Own Review! )

Key Features and Specifications

Amplifier Research 4000W1000B High Power RF Amplifier, 4000 Watt CW, 80 - 1000 MHz

  • 4000 Watts CW
  • 80MHz–1000MHz

Description

The Model 4000W1000B is a self-contained, air-cooled, broadband, completely solid-state amplifier designed for applications where instantaneous bandwidth and high gain are required. Push-pull circuitry is utilized in all high power stages in the interest of lowering distortion and improving stability. The Model 4000W1000B, when used with an RF sweep generator, nominally provides over 4000 watts of RF power.

The Model 4000W1000B is equipped with a Digital Control Panel (DCP) which provides both local and remote control of the amplifier. The DCP uses a color LCD touch screen and a single rotary knob to offer status reporting and control capability. The display provides operational presentation of Forward Power and Reflected Power plus amplifier status. Special features include a gain control, internal automatic level control (ALC) with front panel control of the ALC threshold, forward and reflective RF sample ports for precise power measurements and RF output level protection. Protection is provided by DC current level sensing of all output stages.

All amplifier control functions and status indications are available remotely in GPIB/IEEE- 488 format and RS-232 hardware and fiber optic, USB and Ethernet. The buss interface connector is located on the back panel and positive control of local or remote operation is assured by a keylock on the front panel of the amplifier.

Housed in a single equipment rack, the 4000W1000B provides readily available RF power for typical applications such as RF susceptibility testing, antenna and component testing, watt meter calibration, and as a driver for frequency multipliers and higher power amplifiers. A safety interlock can be implemented via a rear panel connector.

The export classification for this equipment is EAR99. These commodities, technology or software are controlled for export in accordance with the U.S. Export Administration Regulations. Diversion contrary to U.S. law is prohibited.
